商品の詳細:
お支払配送条件:
|
色: | 要求として | 重さ: | 2800kg |
---|---|---|---|
力を押しつぶすこと: | 70メートル トン | 応用: | マルチユース、解体、スクラップ処理など |
作業圧力: | 300バー | 弁のスピードをあげなさい: | はい |
保証: | 1年 | 状態: | 新しい |
提供されるアフターセールスサービス: | ビデオ技術サポート、オンラインサポート | ||
ハイライト: | 360 rotation excavator metal shears,high strength steel excavator shears,replaceable blade excavator metal shears |

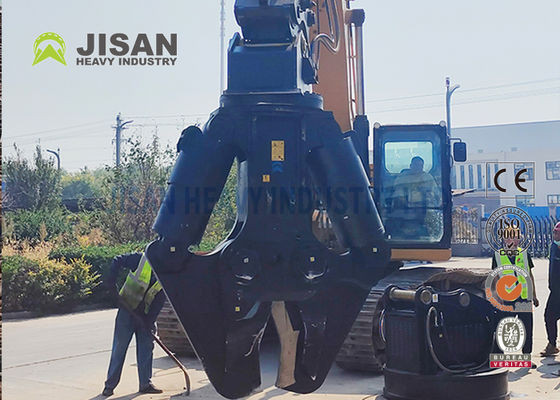

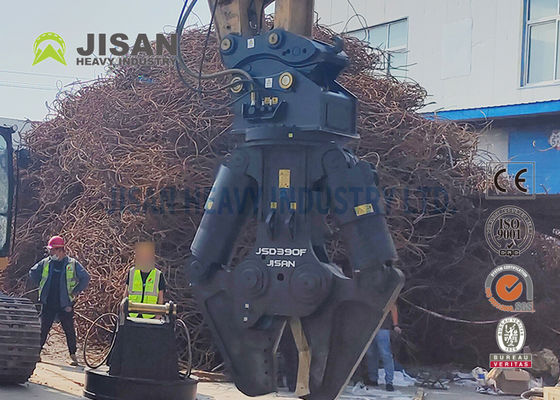

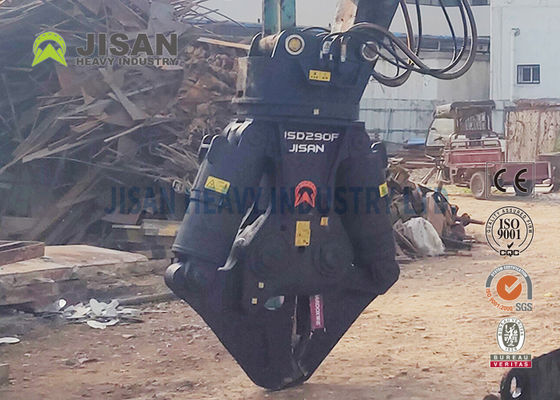

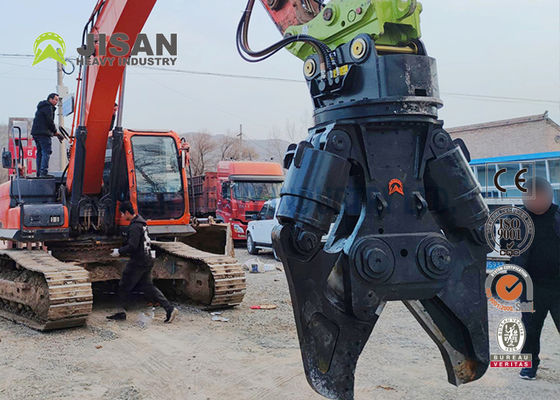

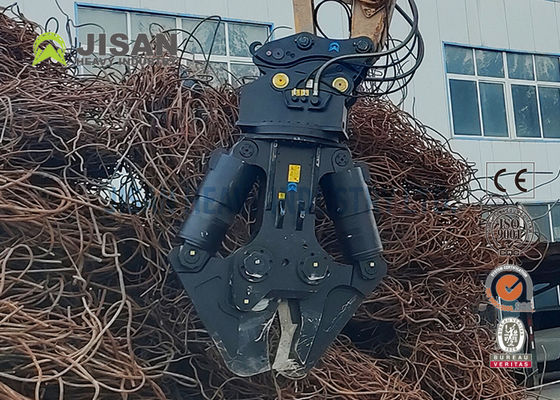

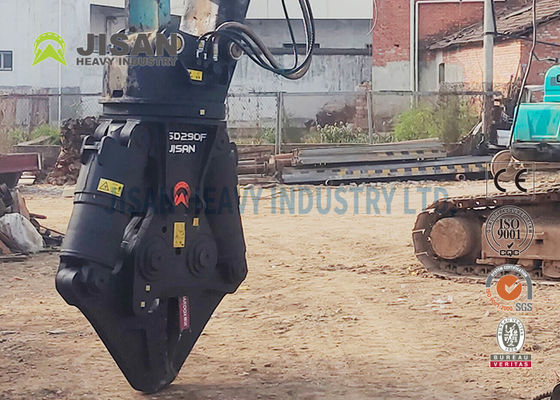

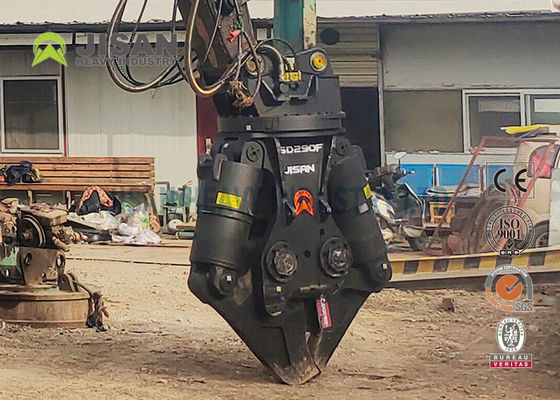

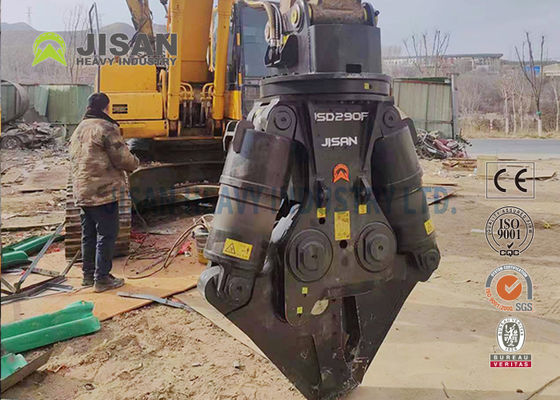

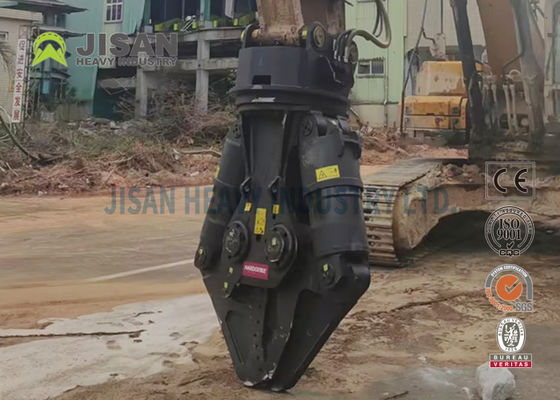

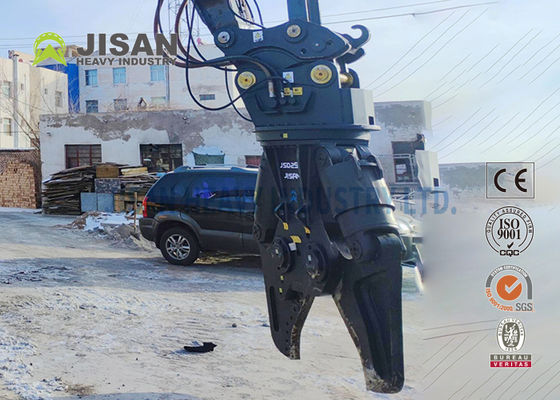

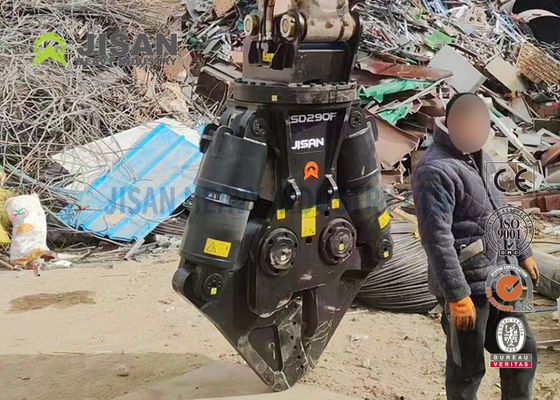

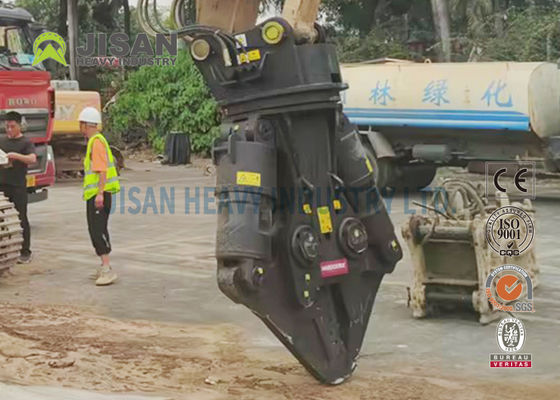

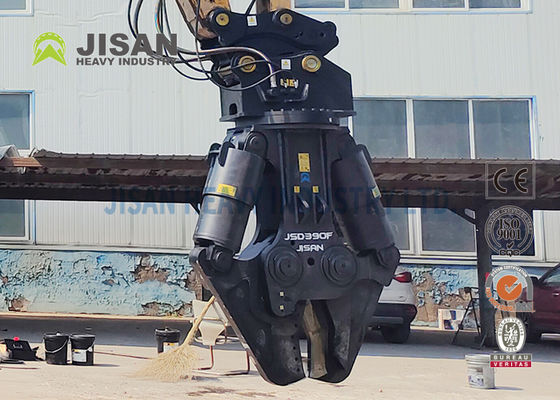

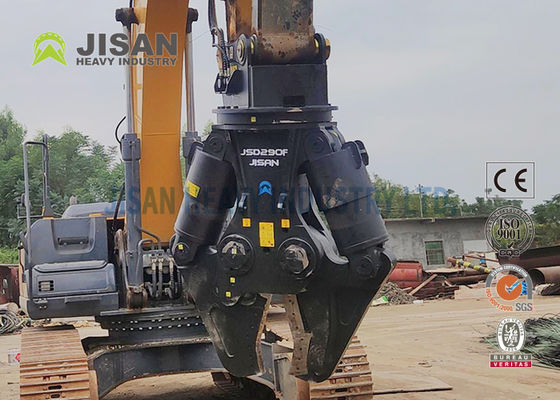

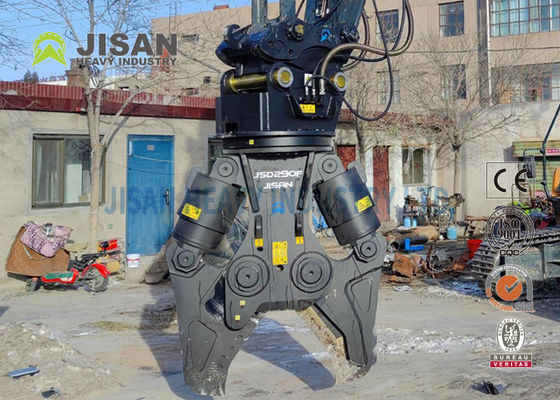

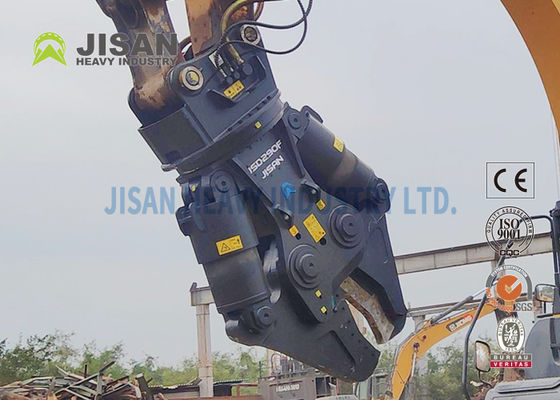

360 Deg Rotation Excavator Metal Shears High Strength Steel Replaceable Blade Abrasion-Resistant
Parameter
Item/Model | Unit | JSD40F | JSD50F | JSD80F | JSD180F | JSD280F | JSD380F | JSD480F | |
Suitable Excavator | T | 3-4 | 4-5 | 6-8 | 12-18 | 20-30 | a:33+/b:24+ | b:40+ | |
Weight | kg | 330 | 450 | 800 | 1540 | 2800 | a:4300/b:4800 | b:6200 | |
Opening | mm | 225 | 375 | 505 | 680 | 740 | 800 | 920 | |
Cutting Depth | mm | 180 | 280 | 400 | 500 | 550 | 650 | 750 | |
Length | mm | 1120 | 1310 | 1570 | 1950 | 2207 | a:3200/b | 180 | |
Blade Length | mm | 165+103 | 205+155 | 260+175 | 325+210 | 350+260 | 350+360 | 400+400 | |
Cutting Force | metric ton | 37 | 50 | 62 | 106 | 156 | 250 | 350 | |
Working Pressure | bar | 24 | 24 | 27 | 300 | 320 | 320 | 350 | |
Cycle Time | Open | sec | 1.8 | 2.0 | 2.1 | 2.4 | 2.5 | 2.8 | 3.0 |
Close | sec | 3.6 | 3.8 | 3.8 | 4.1 | 4.3 | 4.5 | 4.8 |
Features
1. Excavator hydraulic shears are the most versatile tools for demolition and recycling operations.
2. Hydraulic study Rotation: Full 360° hydraulic rotation motor, apply for any location
3. Speed Valve: Speed Valve reduces cycle time
4. High quality Cylinder: Made of special designed sealing structure, strong power with long durability
5. Jaw and Tooth: Use high strength steel, wide jaw opening
6. Replaceable blade, easy for maintenance
7. Made of high strength abrasion-resistant steel, long durability
8. Really simple head adjustment device maximize the operation efficiency
9. JISAN crusher can be suitable for a variety of working environment, not only outstanding performance in handling broken-dismantled work, but also in recycling of concrete material.
