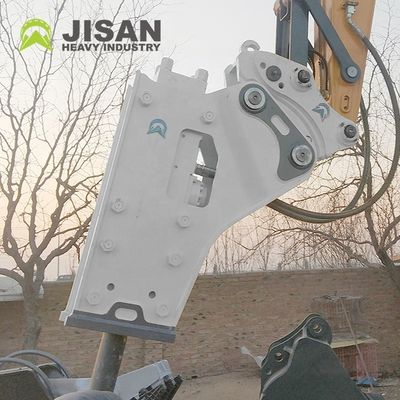

Hydraulic Breaker Hammer for 19-26 Ton Excavators with 160-180kg/cm2 Operating Pressure and 150-190l/min Oil Flow

大画像 : Hydraulic Breaker Hammer for 19-26 Ton Excavators with 160-180kg/cm2 Operating Pressure and 150-190l/min Oil Flow

商品の詳細:

起源の場所:	中国上海
ブランド名:	JISAN
モデル番号:	JSB1900S

お支払配送条件:

最小注文数量:	1
価格:	$6,900-7,500

詳細製品概要

重さ:	1898 kg	長さ:	2810mm
ロッドの直径:	140mm	動作圧力:	160-180 kg/cm2
必要なオイルの流れ:	150～190リットル/分	衝撃率:	350-500 bpm
適切な掘削機:	19-26トン	ノミの直径:	140 mm
管の大きさ:	1インチ	コアコンポーネント:	エンジン、圧力容器
圧力範囲:	160-180バー	フロー範囲:	120-160 lpm
衝撃頻度:	400-700 bpm	モデルの重量範囲:	100～7400kg
モデルの長さの範囲:	1000～4300mm
ハイライト:	19-26 Ton Excavator Hydraulic Breaker , 160-180kg/cm2 Operating Pressure Hydraulic Hammer , 150-190l/min Oil Flow Excavator Rock Breaker

Hydraulic Breaker, Hydraulic Hammer, Excavator Rock Breaker

Product Parameters

Item/Model	Weight (kg)	Length (mm)	Pressure (bar)	Flow (lpm)	Rate (bmp)	Hose (inch)	Chisel (mm)	Suit (ton)
JSB100	100	1000	90-120	15-25	900-1400	1/2	40	0.8-2.0
JSB200	167	1300	90-120	20-40	700-1200	1/2	45	1.2-3.0
JSB300	194	1400	90-120	25-50	600-1100	1/2	53	2.5-4.5

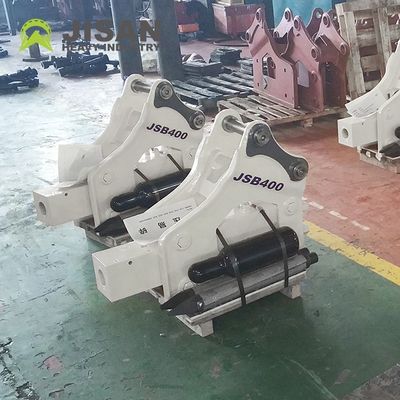

JSB400	363	1700	110-140	40-70	500-900	1/2	68/70	4-7
JSB600	450	1750	110-160	50-90	500-800	1/2	75	6-9
JSB800	730	2100	120-170	60-100	400-700	3/4	85	7-14
JSB900	970	2400	150-170	80-120	400-700	3/4	100	11-16
JSB1600	1950	2700	160-180	120-160	400-700	1	135	19-26

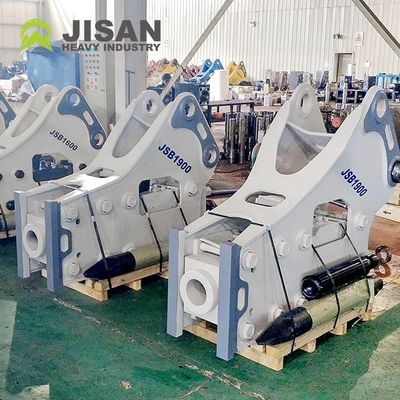

JSB1900	2050	2860	160-180	130-170	400-600	1	140	19-26
JSB3500	3000	3100	160-180	170-220	250-400	1	155	28-40
JSB4500	3300	3286	160-180	200-300	250-350	1 ¼	165	36-45

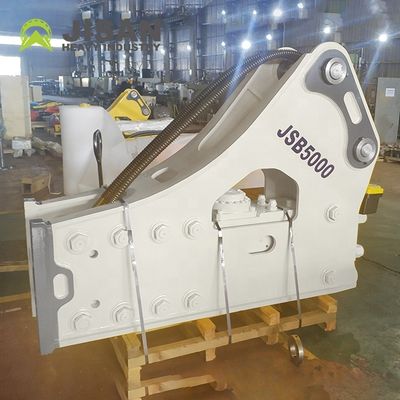

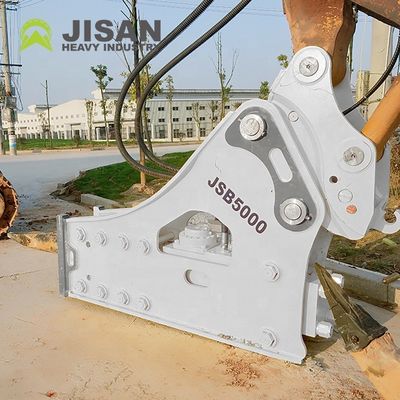

JSB5000	4250	3800	160-180	210-290	200-350	1 ¼	175	40-55
JSB5000	4900	3700	180-220	220-300	200-250	1 ¼	185	50-60
JSB6000	5400	4200	200-240	230-320	150-200	1 ¼	195	55-65
JSB6500	7400	4300	200-240	320-490	150-200	1 ¼	205	65-100

Feature Details

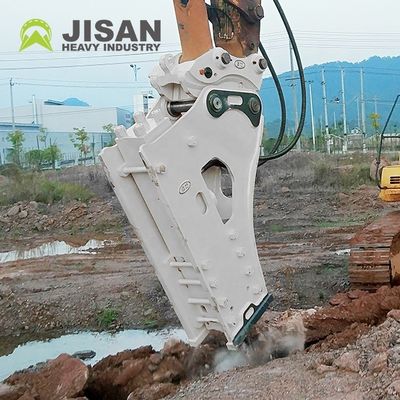

The excavator hydraulic breaker is a versatile front-end equipment attachment with high strength, power, and compact design. It excels in concrete breaking, mining, boulder demolition, bridge repair, and emergency rescue operations. This essential tool is widely used by fire brigades, traffic police, and industrial sectors for demolition and construction applications.

Applications include demolition, deconstruction, primary rock excavation, secondary rock breaking, trenching, foundation work, and asphalt cutting. Our hydraulic hammers are compatible with carriers ranging from 50kg to over 10,000kg, featuring advanced systems like self-lubrication, vibration damping, and automatic rock hardness adjustment.

Precautions for Safe Operation

Ensure proper positioning for effective breaking force. Incorrect positioning reduces hammering energy.
Avoid excessive positioning that may cause the machine to tilt forward when rocks break.
Do not hammer when vibrations may transmit to the base machine's tracks.
Align boom force direction with the rod and maintain vertical hammering surface.
Never use the breaker rod to move rocks - use stone claws instead.
Avoid sweeping debris with the breaker to prevent premature wear.
Do not operate with components submerged in water/mud without proper modifications.
Prevent the breaker from falling onto rocks to avoid damage.
Avoid operating at full cylinder extension/retraction to prevent carrier damage.
Never use the breaker for lifting - lifting eyes are for maintenance only.
Warm up the machine for 5-10 minutes before operation, especially in cold conditions.
Stop operation if hoses vibrate abnormally and inspect immediately.
Avoid blank hammering to prevent component wear and warranty voidance.
Operate at specified engine speed - excessive speed increases oil temperature without improving performance.
